Radio-controlled tracked skid steer loader

WX15 Rc

Radio-controlled, tracked skid steer loader

LIFTING

340Kg

WITH COUNTERWEIGHTS

ENGINE POWER

14,8HP

KUBOTA Z602 - E4B

HYDRAULIC FLOW RATE

25,6L/min

190 BAR

Practicality, robustness, and reliability make the WorkyQuad WX15 RC an exceptional and versatile machine, capable of handling all types and conditions of terrain. The WX version has been developed for the demanding professional who needs to operate in tight spaces while having a reliable machine that is compact in size but delivers high performance.

Design

Unlimited traction

Our WX models are equipped with a direct drive system and rubber tracks featuring an "all trac" tread pattern.

The steel toothed drive wheels offer strength and durability. The rubber tracks reduce ground pressure, enhancing grip and traction.
This design allows the machine to move smoothly, minimizing sinking on soft terrain and improving energy efficiency.
In short, the skid steer is ideal for working on challenging terrains thanks to the combination of improved adhesion, lower ground pressure, and reduced resistance.

Technology

Remote-controlled
mini loader

Take control and experience operating a construction machine like never before!
This remote-controlled model is essential in situations where working safely is crucial, such as maintaining safe distances due to the presence of hazardous materials.

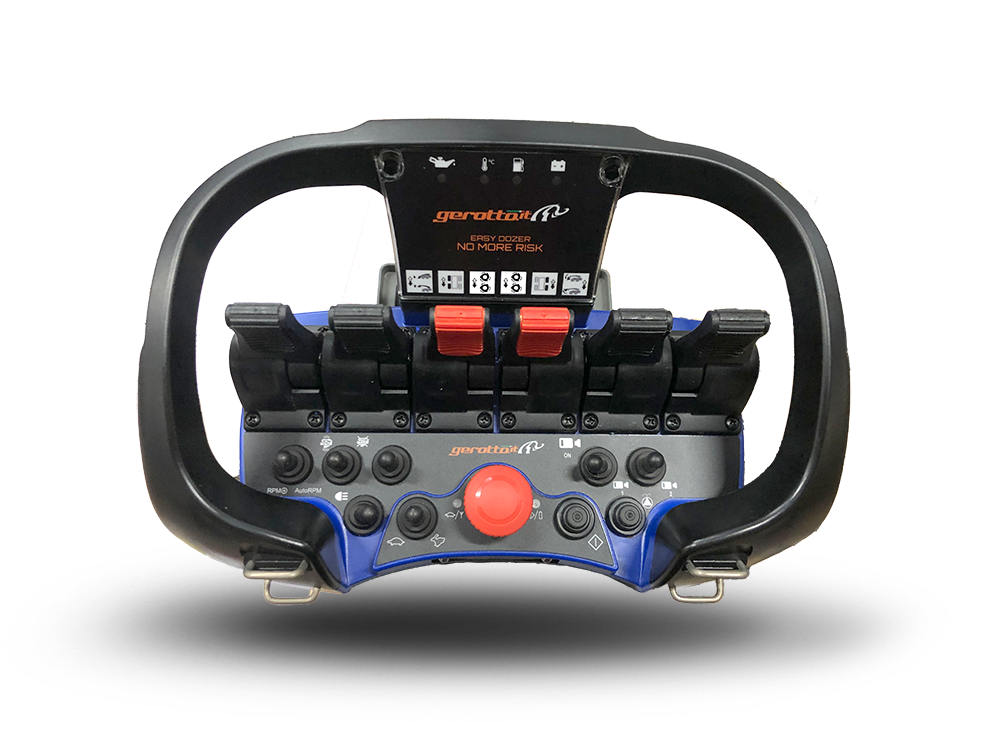

Thanks to the new ergonomic remote control, handling your new WX15 RC will be a breeze!

FEATURES

Details that make a difference

TECHNICAL DATA SHEET

ALL THE INFORMATION YOU NEED

DATA	SPECIFICATIONS
Engine	KUBOTA Z602 – E4B
Power HP/Kw	14,8/10,9
Displacement cm3/ number of cylinders:	599/2
RPM	3200
Ignition	Electric
Cooling system	Air
Fuel	Diesel
Drive System	Hydraulic with 4WD/radio-controlled
Hydraulic flow rate l/min	25,6
Speed	0-4 (proportional)

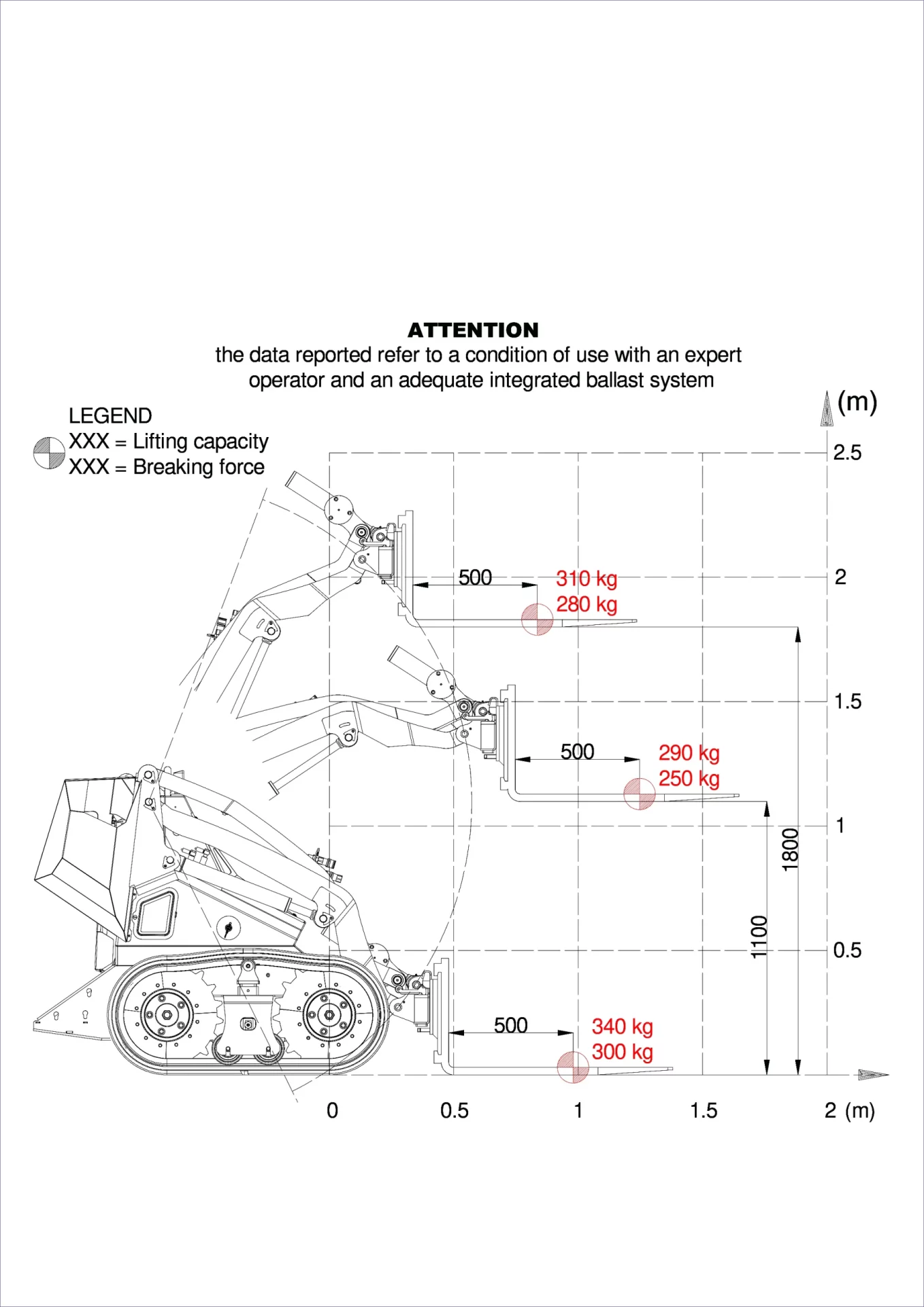

Lifting capacity Kg	340 (with counterweights)
Traction capacity Kg	420 (with counterweights)
Tear-off force Kg	300
Dimensions ( L mm x W mm x H mm)	1525 x 1050 x 1305
Weight Kg (empty)	884

LIFTING

340Kg

WITH COUNTERWEIGHTS

ENGINE POWER

14,8HP

KUBOTA Z602 - E4B

HYDRAULIC FLOW RATE

25,6L/min

190 BAR

Design

Unlimited traction

Technology

Remote-controlled
mini loader

TECHNICAL DATA SHEET

ALL THE INFORMATION YOU NEED
