WorkyQuad WX1000 - Cast Group

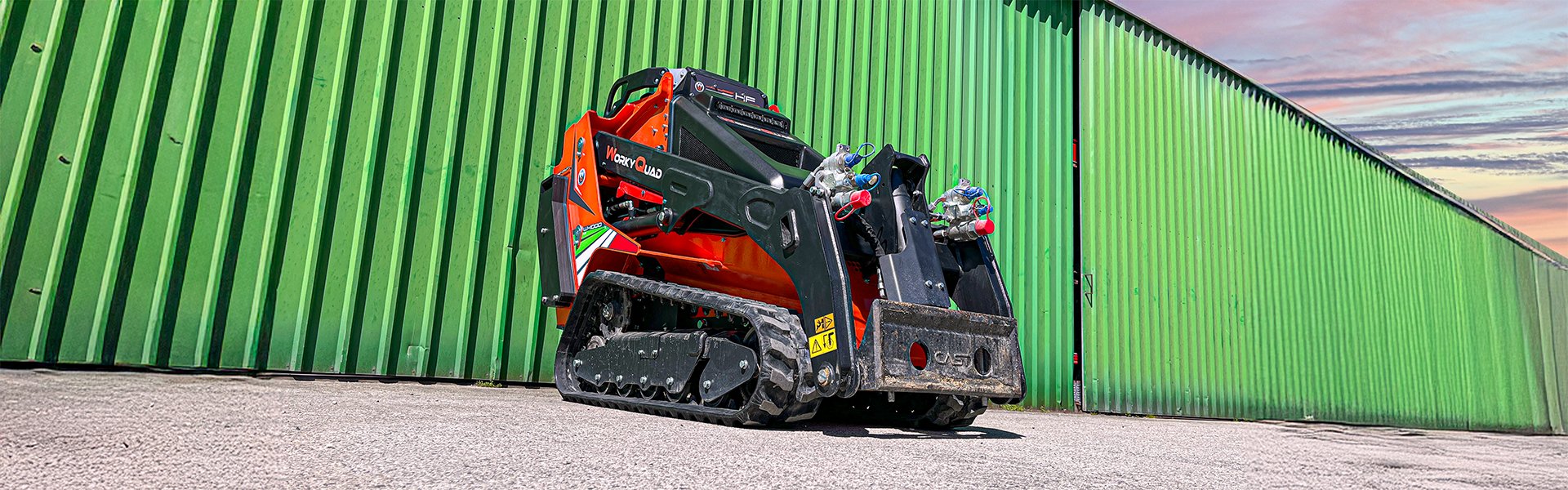

WX1000

The 25HP tracked skid-steer

TIPPING LOAD

1285Kg

WITH COUNTERWEIGHTS

ENGINE POWER

25hp

KUBOTA D1105

HYDRAULIC FLOW RATE

2x33L/min

"HIGH FLOW" SYSTEM

What makes our WorkyQuad machines with the "High Flow" hydraulic system so special?
The answer is simple: exceptional power and smoothness.

Thanks to the new system that allows for higher hydraulic flow, these mini loaders can deliver extraordinary power to meet all your needs, exceeding every expectation.

Learn more about the High Flow system

Discover

Design

Orange and blue, The return of a legend

The WX1000 packs all the most advanced technology into a compact and streamlined design. Every detail is optimized to ensure high performance, featuring a powerful 25 HP engine, dual High Flow pumps at 33 l/min, and smart technical solutions. Maximum efficiency, minimal footprint.

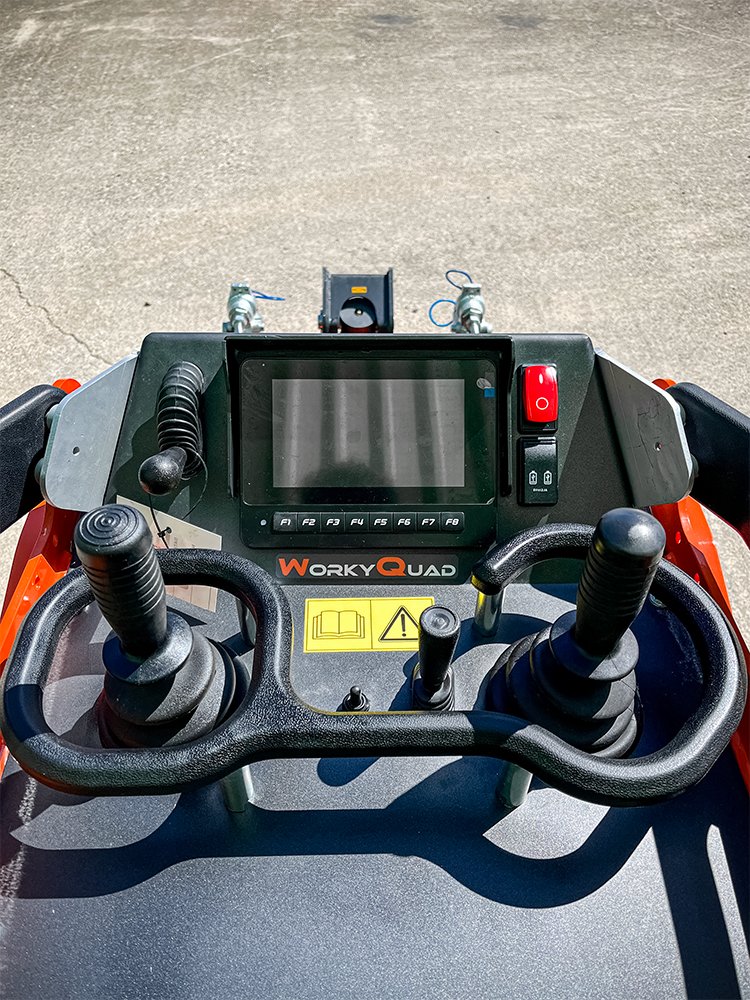

FEATURES

Details that make a difference

TECHNICAL DATA SHEET

ALL THE INFORMATION YOU NEED

DATA	SPECIFICATIONS
Engine	KUBOTA D1105
Power HP/Kw	25/18,7
RPM	3000
Ignition	Electric
Cooling system	Liquid
Fuel	Diesel
Drive System	Hydrostatic transmission
Hydraulic flow rate l/min	2 x 33
Speed	0-6 (proportional)
Track	200/230
Tippping load (kg)	1285
Dimensions ( L mm x W mm x H mm)	2160 x 910 x 1420
Weight Kg (empty)	1350
