SSQ11 Purosangue
The Special Edition. To be noticed everywhere
Lifting
280kG
WITH COUNTERWEIGHTS
ENGINE POWER
11,7HP
HONDA GX390
HYDRAULIC FLOW RATE
21,6L/min
HYDRAULIC PUMP
Preparatevi a dominare qualsiasi terreno guidando con stile e sicurezza.WorkyQuad SSQ11 Purosangue è il vostro compagno affidabile, pronto a eseguire ogni vostro comando e a trasportarvi con facilità attraverso le sfide.Entrate nell'era della maggiore produttività e dell'eleganza senza pari. Take the reins of power. Take on unprecedented challenges.
Design
Skid steer system

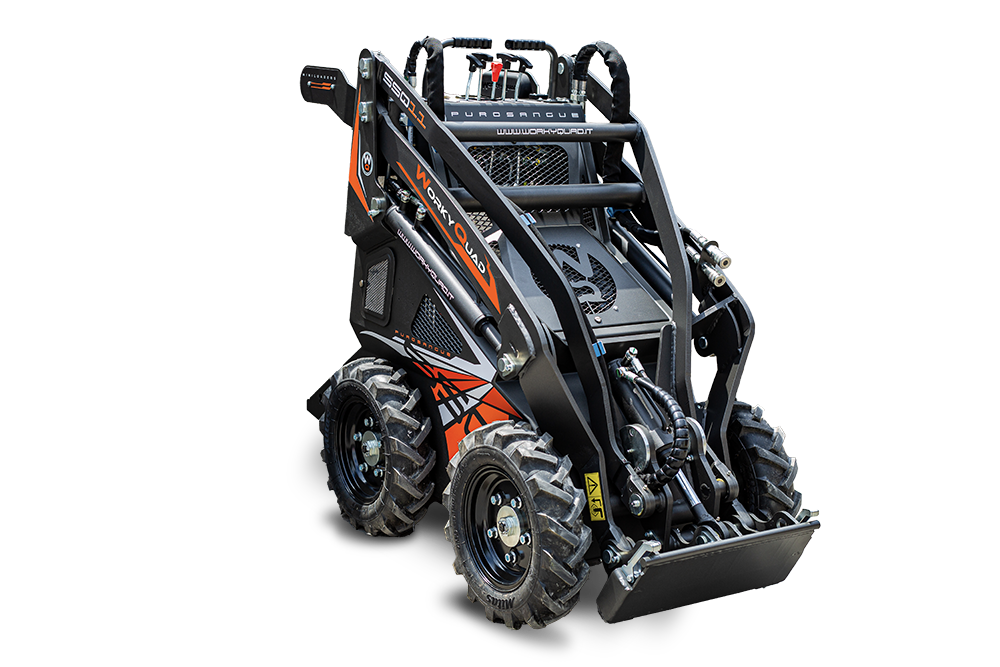

We are proud to present our new WorkyQuad SSQ11 PUROSANGUE special edition. With a robust black chassis equipped with 50kg of ballast, this vehicle is ready to tackle any task with determination. Its special edition livery not only catches the eye, but also reflects your dedication to work and adventure.
FEATURES
DESIGNED TO BE SIMPLE
TECHNICAL DATA SHEET
ALL THE INFORMATION YOU NEED
| DATA | SPECIFICATIONS |
|---|---|
|

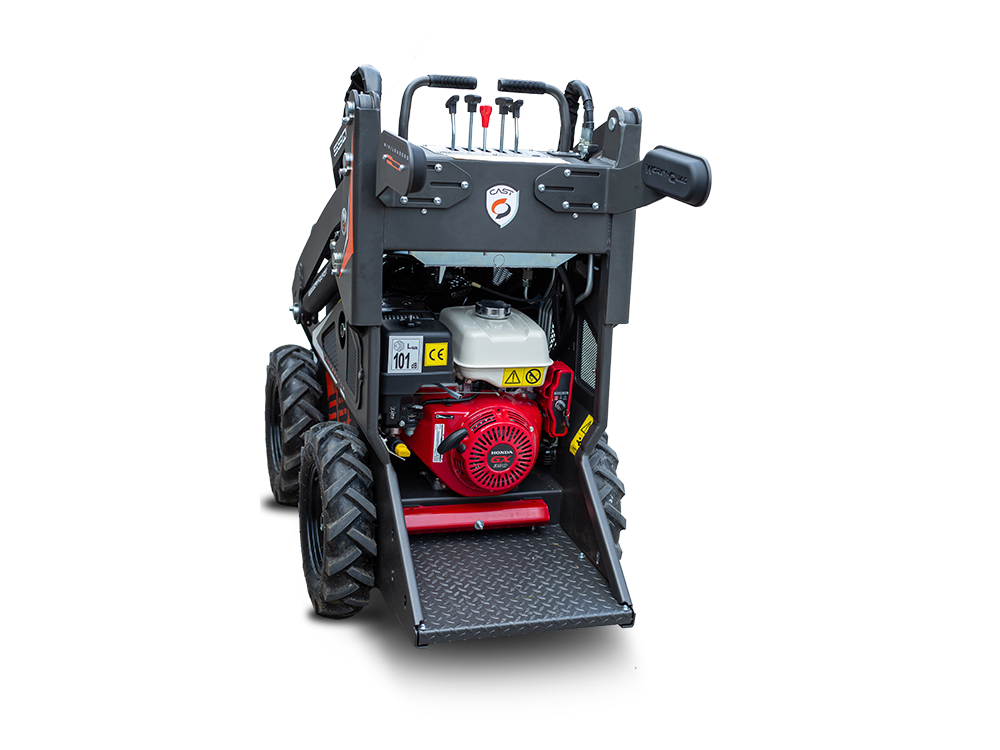

Engine |
HONDA GX390 |
|
Power HP/Kw |
11,7/8,7 |
|
Displacement cm3/ number of cylinders: |
389/1 |
|
RPM |
3600 |
|
Ignition |
Electric |
|
Cooling system |
Air |
|
Fuel |
Petrol (Euro95) |
|
Drive System |
Hydraulic with 4WD |
|
Hydraulic flow rate l/min |
21,6 |
|
Speed |
0-6 (proportional) |
|
"Tractor" Tyres |
4.00x8 |
|
Lifting capacity Kg |
280 (with counterweights) |
|
Traction capacity Kg |
420 (with counterweights) |
|
Tear-off force Kg |
300 |
|
Dimensions ( L mm x W mm x H mm) |
1525 x 740 x 1258 |
|
Weight Kg (empty) |
600 |
|

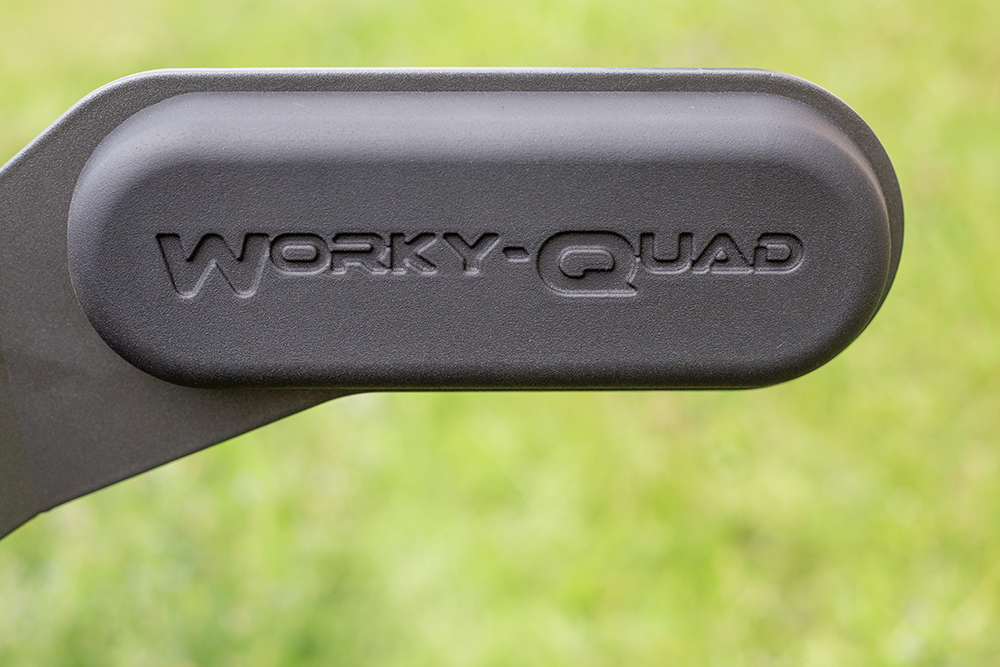

Throttle lever, Side protectors, Hour meter: |
Standard |
|
Side weights 50kg |
Standard |
|
Limited edition 'PUROSANGUE' livery |
Standard |
