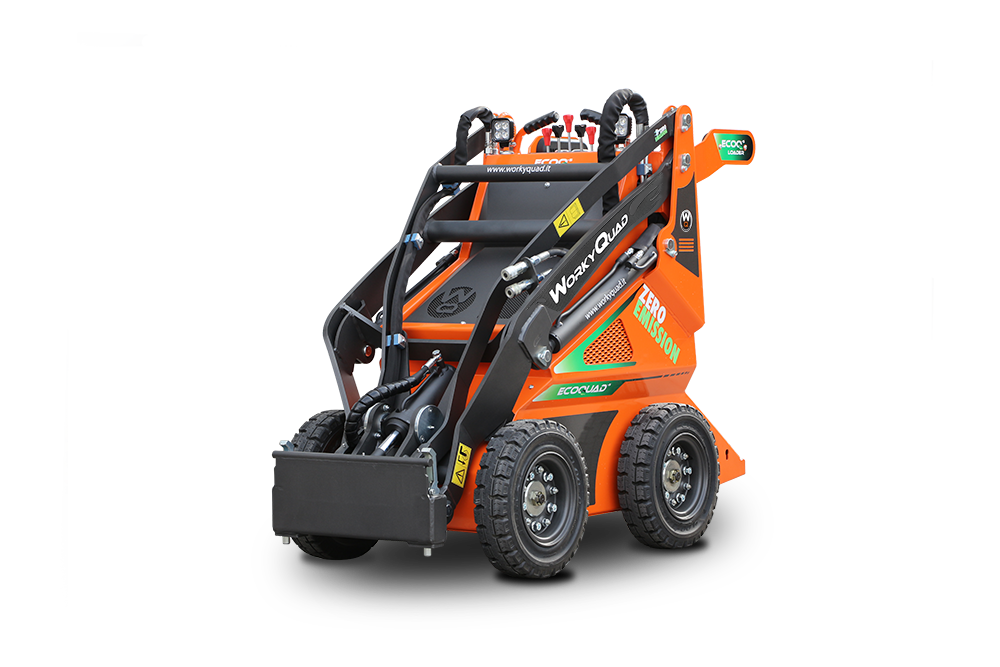

Electric Mini skid steer loader

ssq eco

electric and powerful

Lifting

450Kg

WITH COUNTERWEIGHTS

ENGINE POWER

5,7Kw

PERMANENT MAGNETS

HYDRAULIC FLOW RATE

18,5L/min

HYDROSTATIC PUMP

The powerful and compact electric mini skid steer loader that respects the environment.

Zero emissions, for cleaner air and environmentally friendly batteries with improved safety, free of leaks..

Recharging time is approximately 7 hours, while the charging time at average working conditions is 7 hours.

POWER

traction battery

The generous electric motor with two permanent magnets is very quiet and the battery can offer a range of up to 7 hours depending on the intensity of use. The SSQ ECO is available with a 36-volt, 240 Ah rated electrolyte traction battery that offers excellent autonomy even under heavy-duty conditions, low weight and an extended service life. These features make the SSQ ECO the most proven skid steer loader of the moment.

video

SSQ ECO in motion

FEATURES

DESIGNED TO BE SIMPLE

TECHNICAL DATA SHEET

ALL THE INFORMATION YOU NEED

DATA	SPECIFICATIONS
Engine	Electric, 2 permanent magnets
Battery type	Traction battery
Nominal voltage (V) - Battery capacity (Ah)	36 - 240
Power Kw	5,7
Hydraulic flow rate l/min	18,5
"Forklift"	4.00-8
Side protections	Standard
Lifting capacity Kg	450 (with counterweights)
Traction capacity Kg	390 (with counterweights)
Tear-off force Kg	400
Dimensions ( L mm x W mm x H mm)	1525x740x1250
Weight Kg	850
