Castloaders Maxo 57HP Dual speed

Castloaders Maxo 57HP D-SPEED

Dual speed for intensive use

LIFTING

2100Kg

WITH COUNTERWEIGHTS

ENGINE POWER

57HP

Kohler KDI 1903TCR
STAGE V

HYDRAULIC FLOW RATE

80L/min

HYDROSTATIC PUMP

BOOM LENGTH

3300mm

TELESCOPIC

Castloaders Maxo 57HP d-speed is today the flagship model of our production.

A very powerful and robust machine, suitable for multiple applications, especially in agriculture and construction. All models can be equipped with a heated cabin and air conditioning.

Power

Above all expectations.

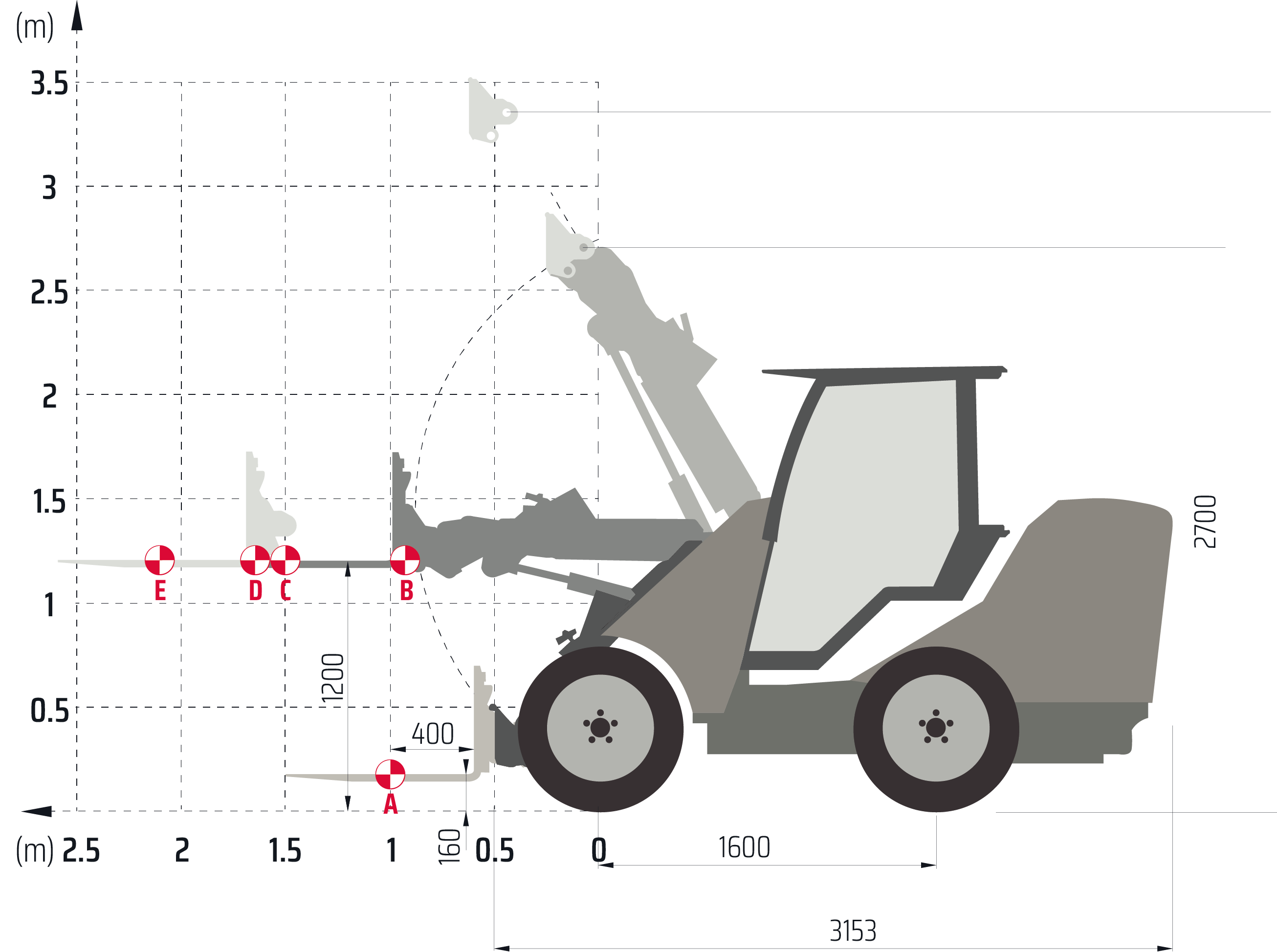

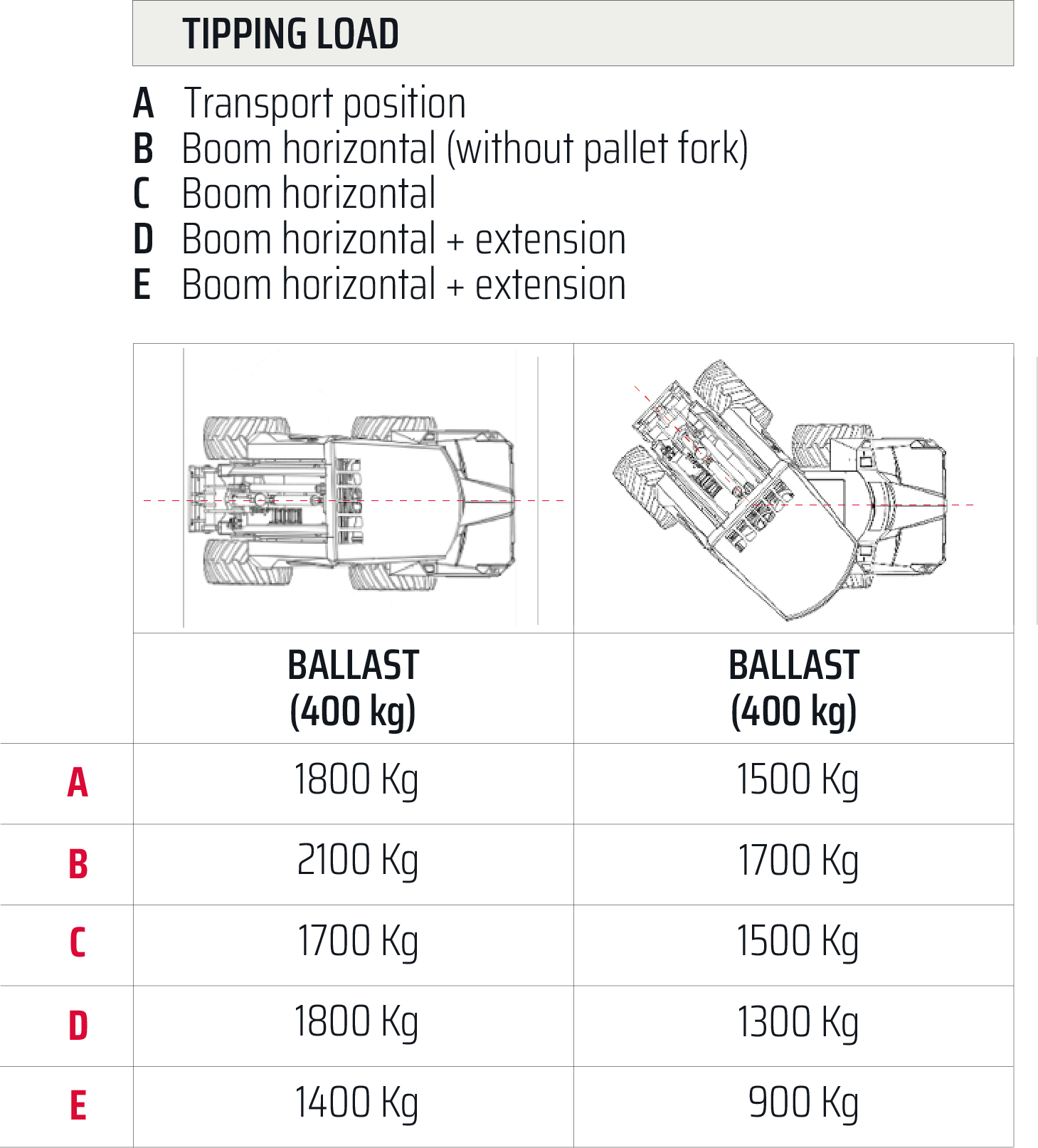

Following the latest tests, our flagship managed to lift 2100 kg in tilting position (with the telescopic boom not extended), nearly equivalent to its own weight.
An incredible result that places it at the top of its category.

FEATURES

Perfection is in the details

TECHNICAL DATA SHEET

ALL THE INFORMATION YOU NEED

DATA	SPECIFICATIONS
Engine	Kohler KDI 1903TCR STAGE V
Power HP/Kw	57/42
Poclain double-speed wheel motors	HF System
Hydrostatic transmission	42 @ 2600 RPM
Electric differential lock	Standard
Liquid cooling	Standard
Double cylinder self leveling	Standard
Hydraulic flow rate l/min	80
Joystick	11 function
12V socket + front electrical auxiliary socket	Standard
Ergonomically adjustable seat with armrest and seat belt	Standard
LED worklights	Standard
Digital dashboard	Standard
“Universal” accessory coupling plate	Standard
Metal bodywork	Standard
ROPS+FOPS Protection	Standard
Telescopic boom	Standard
“Tractor” Tyres	31×15.50-15
Weight Kg	2350
Integrated counterweights 185 kg	Standard

LIFTING

2100Kg

WITH COUNTERWEIGHTS

ENGINE POWER

57HP

Kohler KDI 1903TCR
STAGE V

HYDRAULIC FLOW RATE

80L/min

HYDROSTATIC PUMP

BOOM LENGTH

3300mm

TELESCOPIC

Power

Above all expectations.

TECHNICAL DATA SHEET

ALL THE INFORMATION YOU NEED
