30T Forest
INCREASED RESISTANCE FOR THE HARDEST WORK
LIFTING
1180Kg
WITH COUNTERWEIGHTS
ENGINE POWER
25HP
MOTORI RUOTA POCLAIN
HYDRAULIC FLOW RATE
47L/min
HYDROSTATIC PUMP
BOOM LENGTH
2945mm
TELESCOPIC

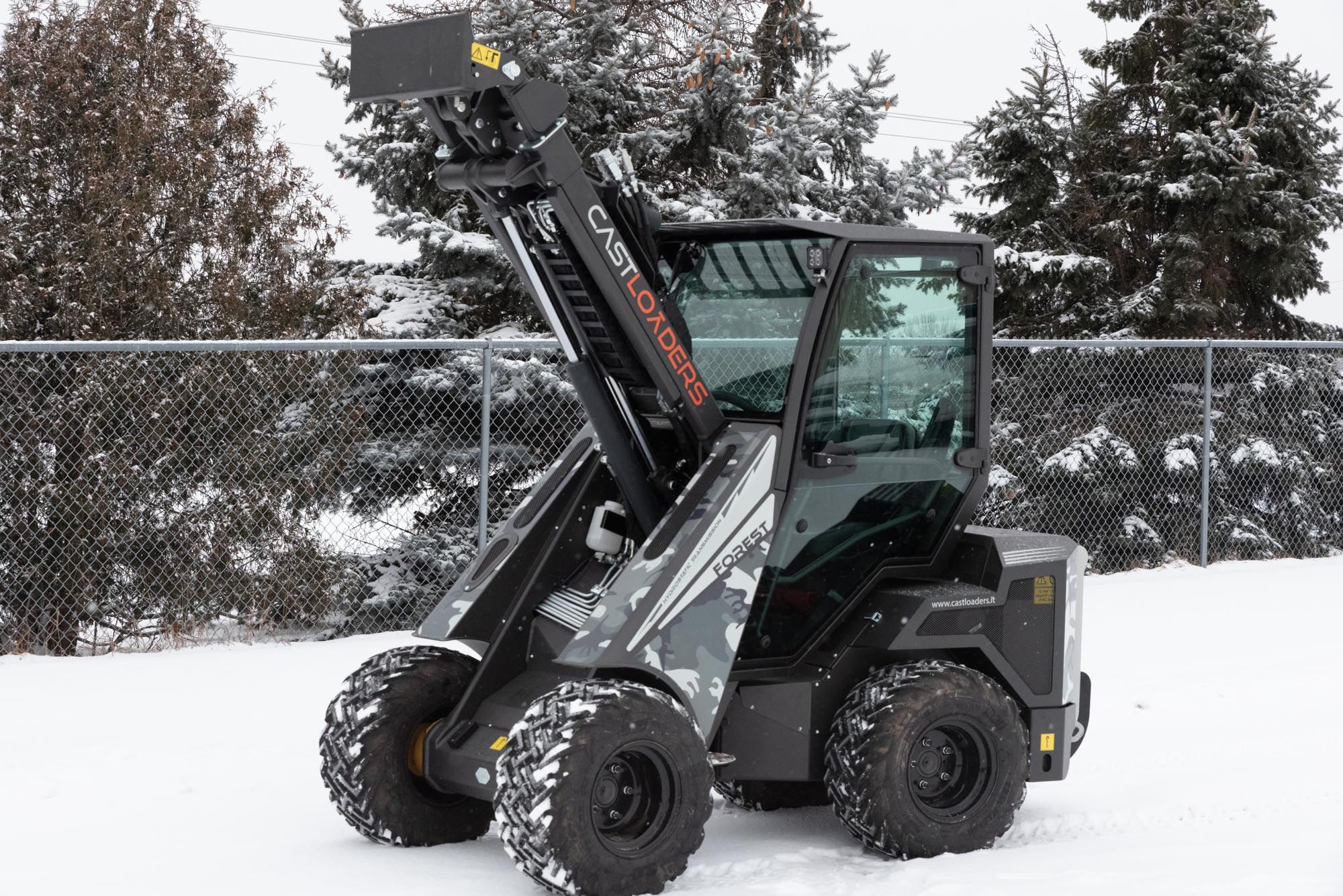

Castloaders 30t forest is designed for forestry work.

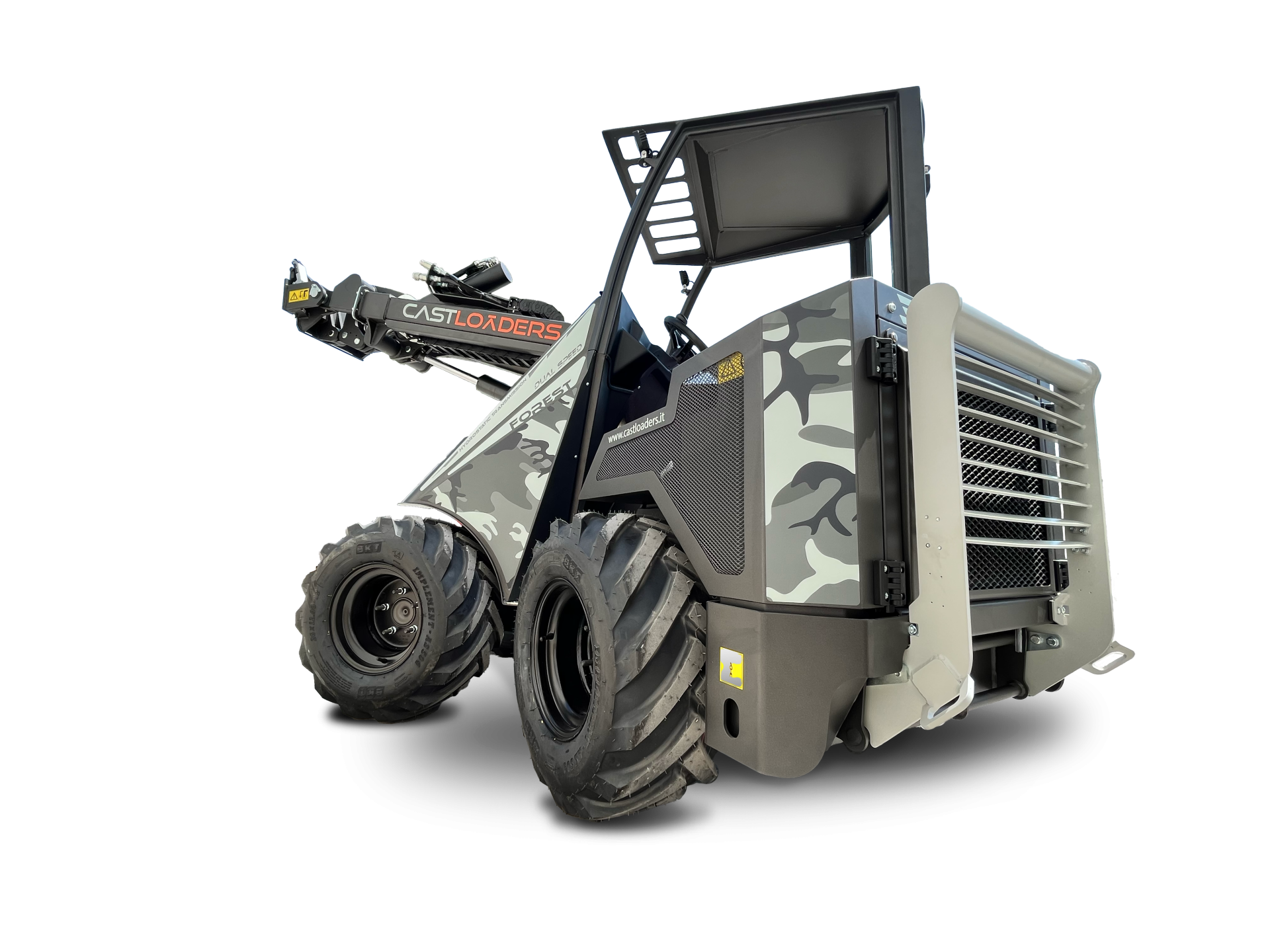

With poclain wheel motors and equipped with the rear protection grid, it is an excellent articulated mini-loader capable of tackling any adventure.
Design
Aggressive by nature.

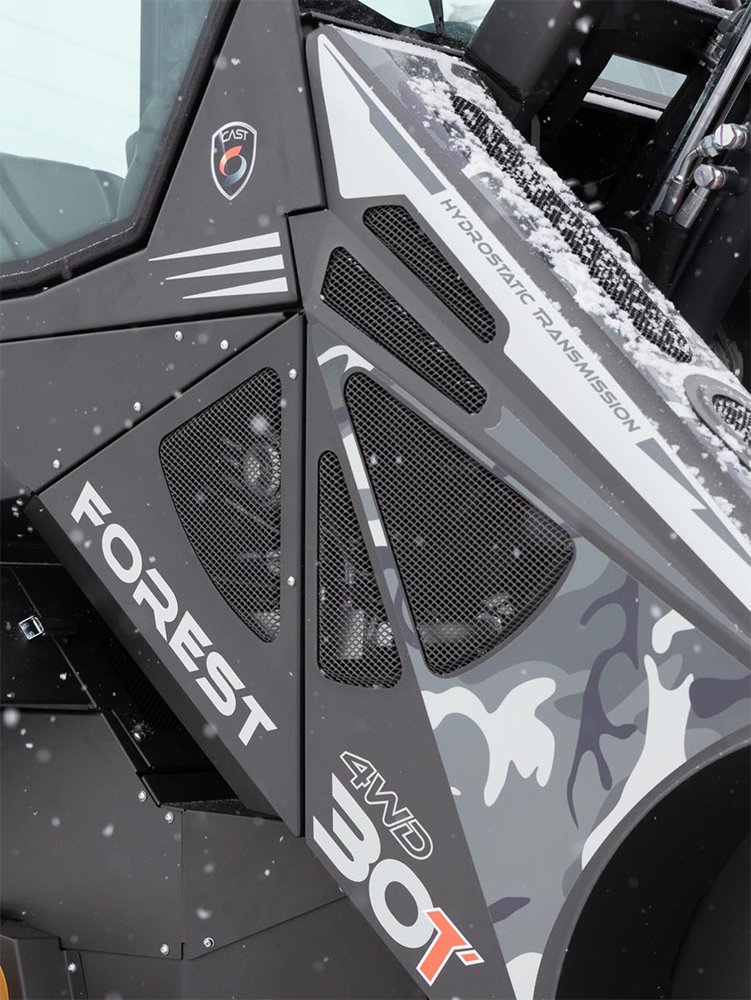

Castloaders 30T Forest leaves the factory with a 'Camouflage' livery combined with a black sablé fairing.
FEATURES
DESIGNED TO BE SIMPLE
TECHNICAL DATA SHEET
ALL THE INFORMATION YOU NEED
| DATA | SPECIFICATIONS |
|---|---|
|
Engine |
Yanmar 3TNV80 |
|
Power HP/Kw |
25/18,5 |
|
Poclain enhanced wheel motors |
By choice:
-Single speed; -Double speed; |
|
Hydrostatic transmission |
Standard |
|
Electric differential |
Standard |
|
Liquid cooling |
Standard |
|
Hydraulic flow rate l/min |
47 |
|

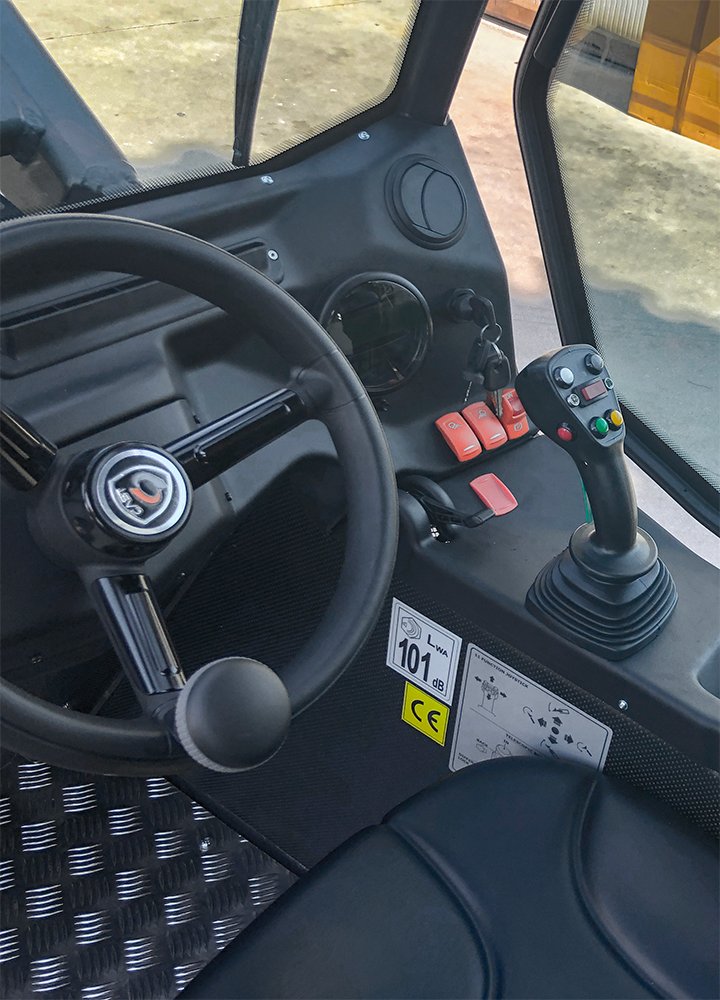

Joystick |
5-function |
|
12V socket + front electrical auxiliary socket |
Standard |
|
Ergonomic seat with safety belts |
Standard |
|
"Universal" attachments coupling plate |
Standard |
|
Black sablé metal bodywork |
Standard |
|
ROPS+FOPS Protection |
Standard |
|
Telescopic boom |
Standard |
|
"Tractor" Tyres |
26x12.00-12 |
|
Weight Kg |
1270 |
|
Self Leveling |
Standard |
|

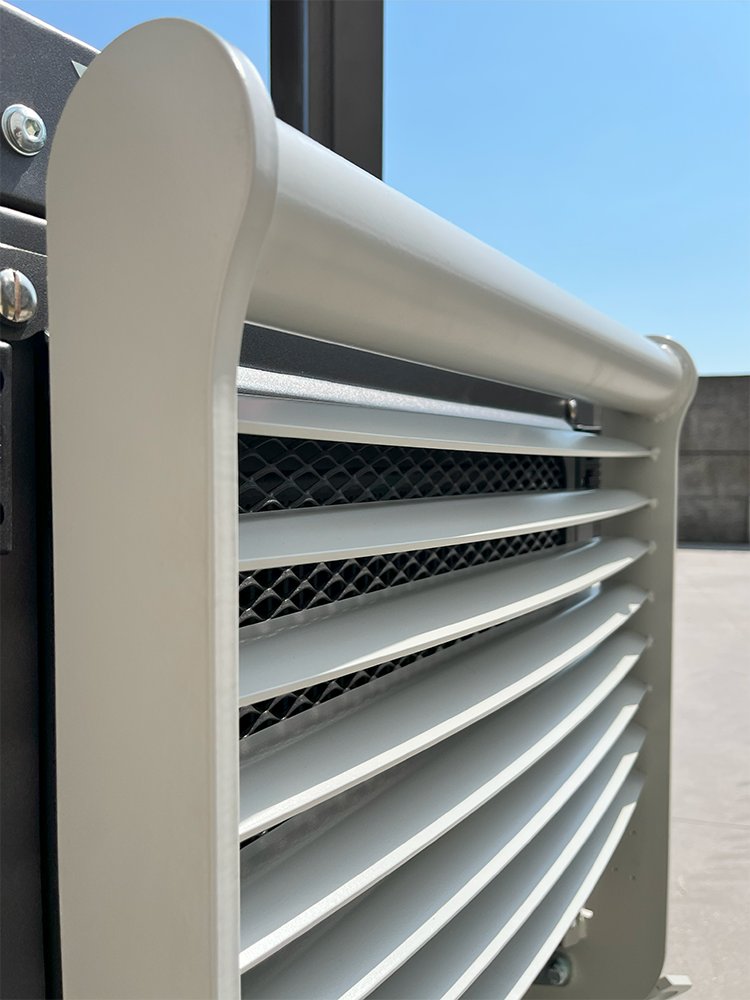

Radiator protection grid |
Standard |
